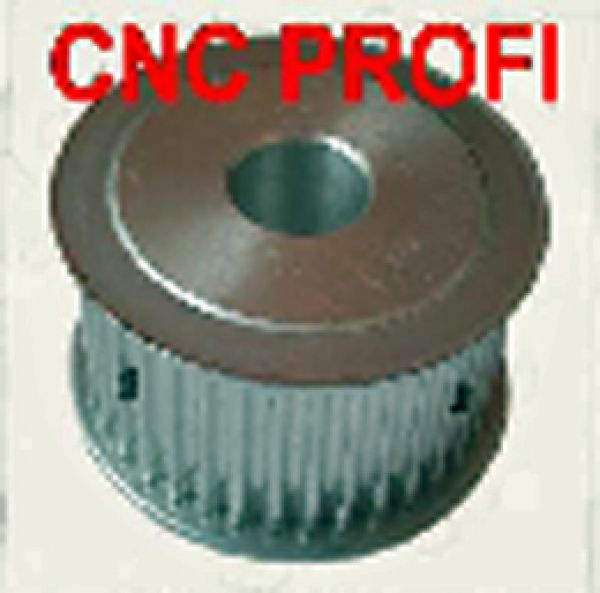

Profi - toothed belt pulley HTD-5M 60 teeth boring Ø 14,00 mm from aluminium in industrial quality

• Optimal for microstep control - CNC machines
• For linear technology, transport solutions, power transmission, center distance bridging, translation changes suitable.
• The toothed belt pulley with a rounded tooth profile offers a quieter operation.
• Increased adhesion, which affects the improvement of the strength of the belt and longer life.

Technical specifications

• Toothed / Timing belt pulley made of a high quality aluminium alloy with surface treatment.
• Inner-diameter boring: Ø 14,00 mm
• Outer- flanged wheel : Ø 100,00 mm
• Outer-tooth washer: Ø 94,00 mm
• Inner-width for belts: 25,00 mm
• Total-width: 30,0 mm
• Number of teeth: 60
• Type HTD-5M-pitch 5 mm
• throughout cylindrical boring tolerance H7
• Shaft attachment with clamping screw M5- 2 x - 90°

Suitable grub screws available from us! - Here(M5x15)

Fitting toothed belts deliverable from us! - Here(toothed belt width HTD-5M 25 mm)

* Quality product from the stockist *

* New and original packed up *



Scope of delivery: 1 piece of  toothed belt pulley with guarantee / invoice
