Profi - Stepper motor - 13 Nm 6 A - shaft fi. 14 mm flange 86 mm
- Quiet motor run and low heating of motor and output stage.
- High motor speed thanks to the use of the latest bipolar technology.
- The Closed housing, can be installed vertically or horizontally and protects against a mechanical defect.
- With overvoltage and short circuit protection.
- Optoisolation protects the computer from damage.
- Functionality control visible with a diode LED, which facilitates configuration with the software.
- Can be set with DIP switches (no multimeter required).
- Automatic current reduction - in order to keep the heating of the motor and control card low, it is possible to activate the current reduction.
- Can be used for 2, 3 and 4 phase stepper motors
Technical specifications
- 13 Nm bipolar - 4 connection cables
- Phases: 2
- Phase current : 6 A / 4.2 V
- Step angle: 1.8 ° 200 step/R
- Dimensions: W= 86 mm, H= 86 mm, L= 156 mm
- Shaft d= 14,00 mm
- Weight: 5,8 kg
* Quality product from the stockist *
* New and original packed up *

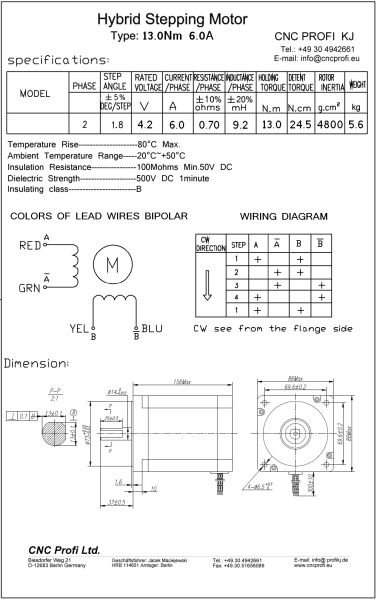

Scope of delivery: 1 Set of stepper motor with guarantee / invoice + data sheet with pin assignment.
