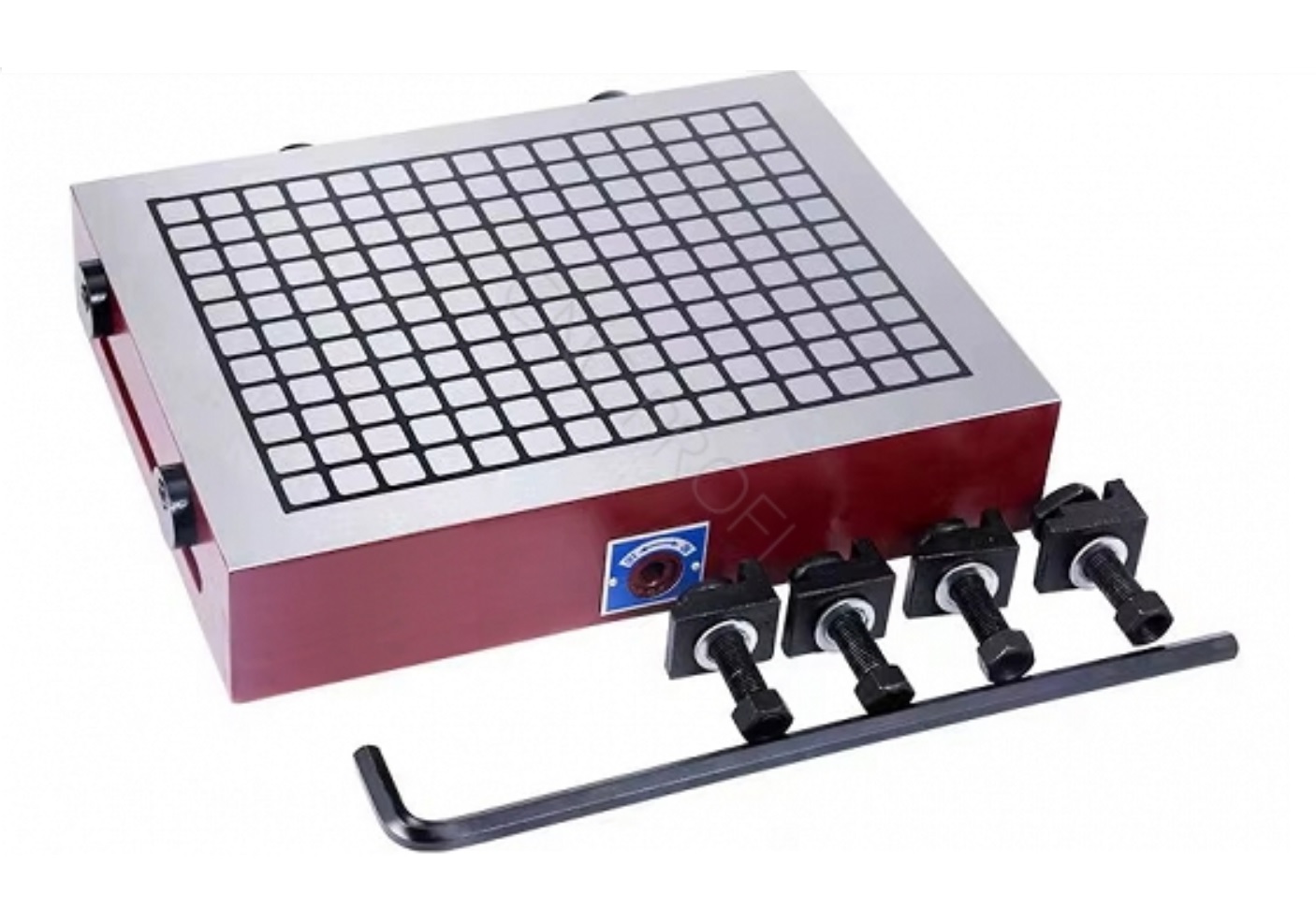

Profi - Magnetic clamping plate

• For clamping workpieces on milling, grinding and eroding machines also for milling machines.
• Clamps everything made of steel easily, quickly, safely and without scratches.
• Permanent magnetic chuck
• Works without electricity
• Material made of strong neodymium magnet system
• Hand lever for switching on and off
• Consistent adhesive force across the entire work surface Angular accuracy and parallelism 0.005 mm
• The back and one outside of the magnetic plate have stops (removable)
• Suitable for use with coolant or fully submerged.

Technical specifications

• Weight: 48 kg
• Length: 400 mm
• Width: 200 mm
• Construction height: 60 mm
• Nominal holding force: 200 N/cm²
• Pole pitch: 18 × 18 mm

* Quality product from the stockist *

* New and original packed up *



Scope of delivery: 1 piece of clamping plate with guarantee / invoice.
