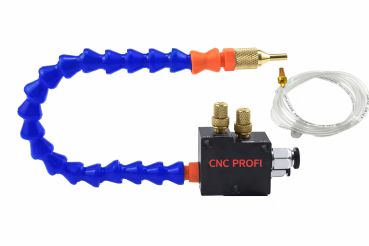

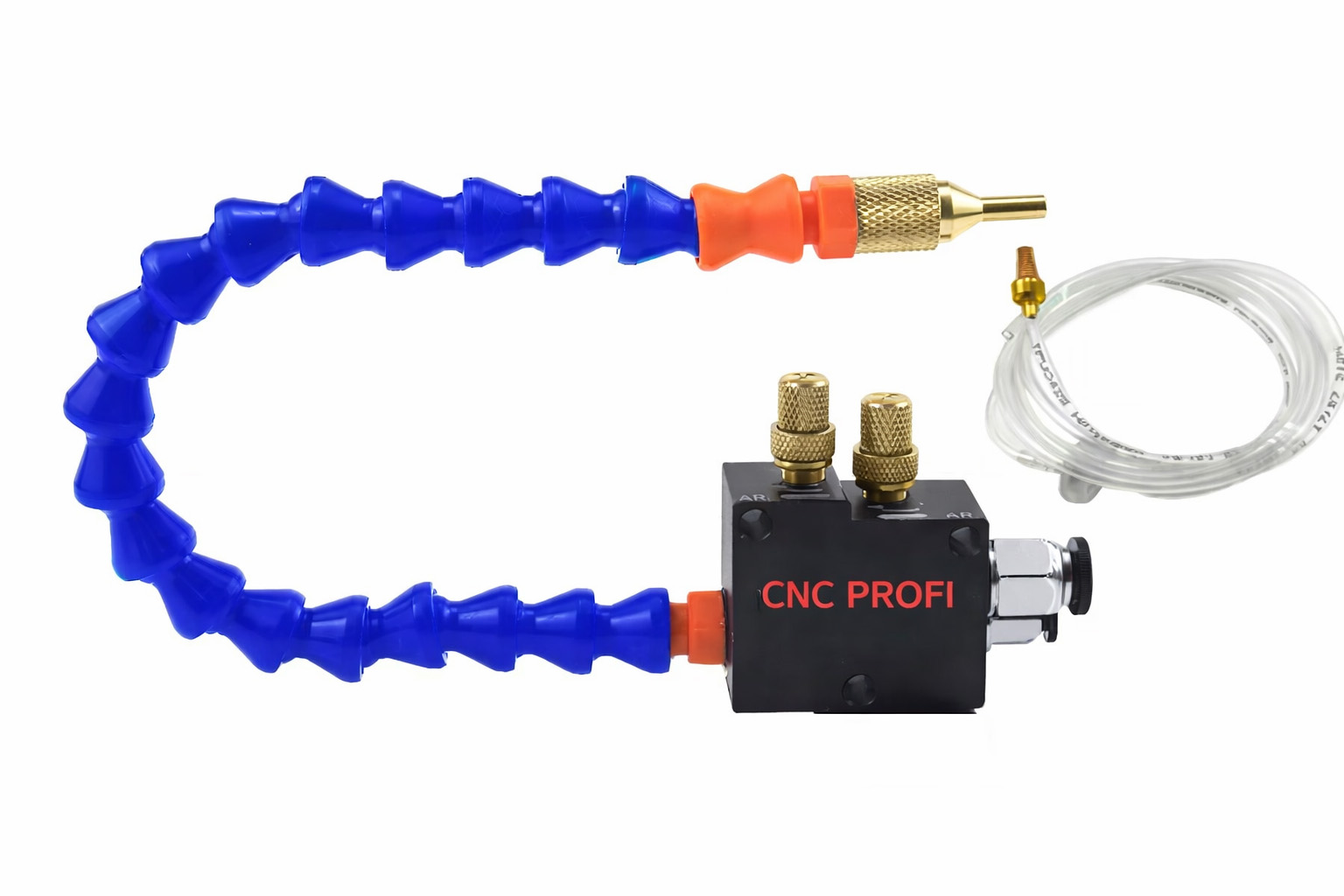

Profi - Oolant Flexible Joint Hose – Mist Coolant Spraying System with Adjustment Screw
The airflow and mist volume can be conveniently adjusted using a precise air valve and a controllable brass nozzle.
Save up to 60-80% lubricant compared to older lubrication tubes
You can set all functions at once, cooling, lubricating and blowing out chips.
Segment hoses can be used for milling machines, lathes, drilling, grinding, eroding machines and also as protective hoses for electrical cables.
We offer: 3/8 "diameter 16 mm, 1/2" diameter 20 mm, 3/4 "diameter 25 mm
Technical specifications
Input for compressed air connection hose Fi 8 mm
Articulated hose with nozzle, total length approx. 35 cm
Oil line length approx. 115 cm
Oil line ends with a brass filter
Continuous use temperature max. 80 ° C - sufficient for most applications
Our CNC professional articulated hoses are put together from individual elements. You can determine the length yourself by disassembling or assembling the elements as required. To make it easier to connect the parts, hold them briefly in hot water; the heating makes them easier to connect.
* Quality product from the stockist *
* New and original packed up *
Scope of delivery: 1 piece of fog coolant spray system with guarantee / invoice.
