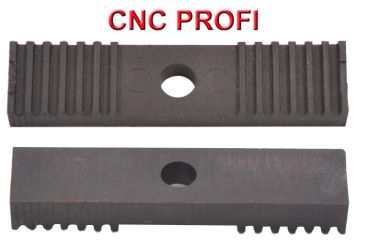

Profi - Mounting plate for toothed belts HTD-3M
- Suitable for Fastening toothed belts with open ends that can be fastened to solid or moving parts of the CNC machine, robots or sliding doors.
- The working temperature range is -30 to 100 °C
HTD00003M010
Technical specifications
- Profile: HDT-3M
- Type HTD-3M-Teilung 3 mm
- Width: 10 mm
- higth: 5 mm
- Total length: 40 mm
- Fixing hole: Fi 4,3 mm
- Material: PA polyamide plastic (nylon)
Advice for installation and use
- The toothed belts must be precisely aligned.
- Belt pretension is required.
- The belt tension must be adjusted (the circumferential force and the pretensioning force must not exceed the permissible belt tensile force)
- At least one toothed belt pulley must have flanged wheels.
- At least 6 teeth have to be in mesh.
- The toothed belt drives should not be lubricated.
* Quality product from the stockist *
* New and original packed up *
Scope of delivery: 1 m of Mounting plate with guarantee / invoice
