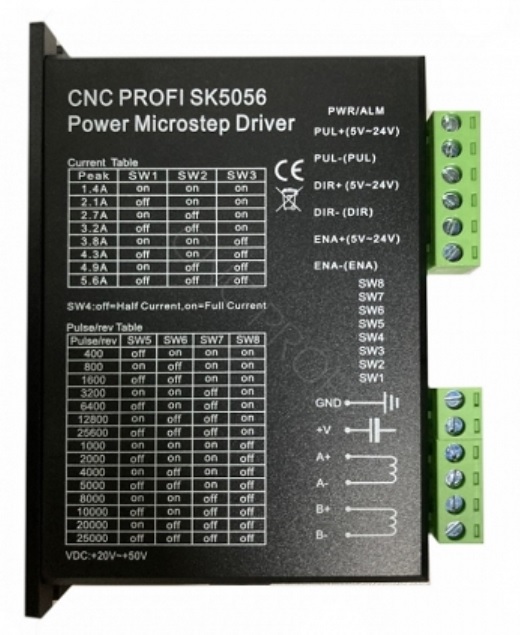

Profi - 5,6 A CNC stepper motor control for 1 axis PC-NC

• Quiet motor run and low heating of motor and output stage.
• High motor speed thanks to the use of the latest bipolar technology.
• The Closed housing, can be installed vertically or horizontally and protects against a mechanical defect.
• With overvoltage and short circuit protection.
• Optoisolation protects the computer from damage.
• Functionality control visible with a diode LED, which facilitates configuration with the software.
• Can be set with DIP switches (no multimeter required).
• Automatic current reduction - in order to keep the heating of the motor and control card low, it is possible to activate the current reduction.

Technical specifications

• Jumpers per phase of 1,4; 2,1; 2,7; 3,2; 3,8; 4,3; 4,9; 5,6 A adjustable.
• Mikroschritt 1/2; 1/4; 1/8; 1/16; 1/32; 1/64; 1/128; 1/256
•                    1/5; 1/10; 1/25; 1/50; 1/125; 1/250
• 20 - 50 Volt Motorspannung
• Compatible to Mach 2/3 , PCNC , CNC - Profi , DIN-CNC , EMC,...
• Logic TTL - compatible (5 - 24 Volt).
• Signal control 400 kHz.
• Suitable for stepper motors with 4, 6 oder 8 connection cables
• Automatic current reduction to 50% ind standby (sleep). Can be switched off via DIP switch.
• Configuration control LED
• Optoisolated inputs step direction and enable
• Dimensions: W =34mm, H =75mm, L=119mm
