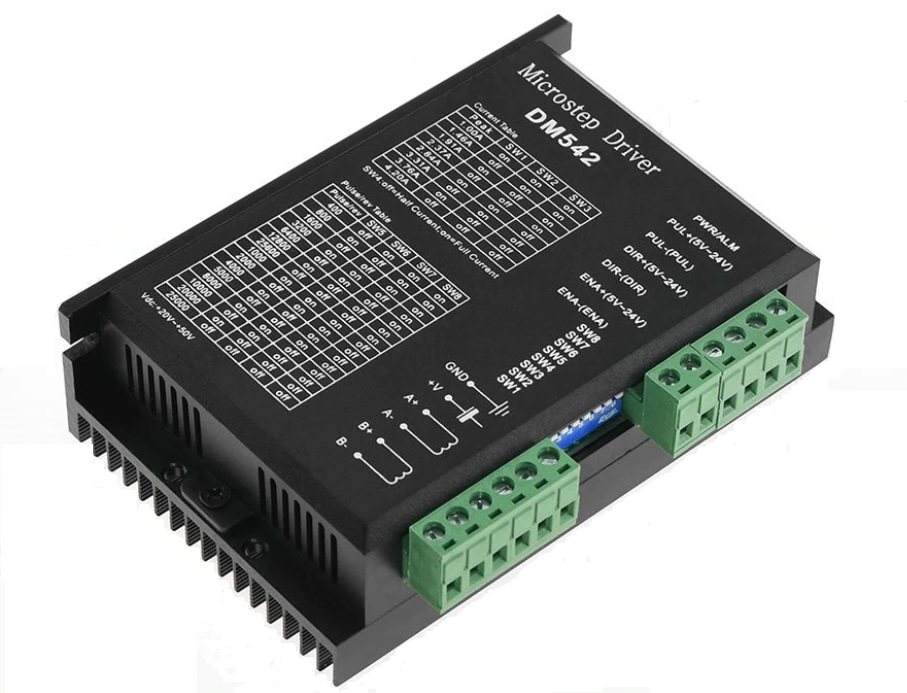

Profi - 4,2 A CNC stepper motor control for 1 axis PC-NC

• The Closed housing, can be installed vertically or horizontally and protects against a mechanical defect.
• With overvoltage and short circuit protection.
• Optoisolation protects the computer from damage.
• Functionality control visible with a diode LED, which facilitates configuration with the software.
• Can be set with DIP switches (no multimeter required).
• Automatic current reduction - in order to keep the heating of the motor and control card low, it is possible to activate the current reduction.

Technical specifications

• Jumpers per phase of 1,0; 1,46; 1,91; 2,37; 2,84; 3,31; 3,76; 4,2 A adjustable.
• Mikroschritt 1/2; 1/4; 1/8; 1/16; 1/32; 1/64; 1/128; 1/256
•                    1/5; 1/10; 1/25; 1/50; 1/125; 1/250
• 20 - 50 Volt Motorspannung
• Compatible to Mach 2/3 , PCNC , CNC - Profi , DIN-CNC , EMC,...
• Logic TTL - compatible (5Volt).
• Signal control 300 kHz.
• Suitable for stepper motors with 4, 6 oder 8 connection cables
• Automatic current reduction to 50% ind standby (sleep). Can be switched off via DIP switch.
• Configuration control LED
• Optoisolated inputs step direction and enable
• Dimensions: W =34mm, H =75mm, L=119mm

* Quality product from the stockist *

* New and original packed up *



Scope of delivery: 1 piece stepper motor controller with guarantee / invoice + data sheet with pin assignment
