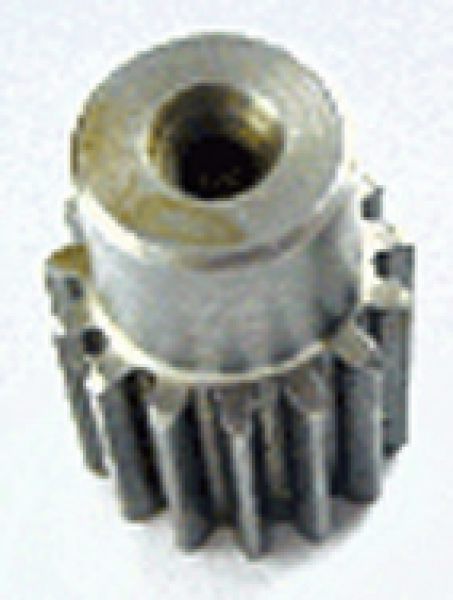

Profi - Gear straight toothed module M1,5 - 34 teeth - boring Ø 14,00 mm from steel in industrial quality - manufactured according to Din 3962/63/67
- Optimal for CNC machines.

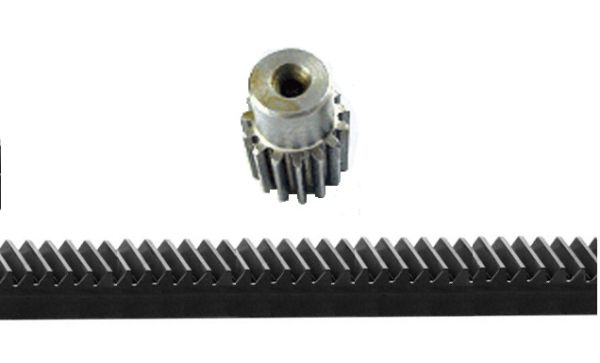

- Can be used in combination with racks and gears of the same module, e.g. to form transmission.
- For linear technology, transport solutions, power transmission, center distance bridging, translation changes suitable.
- The advantage of racks with gears compared to circulating spindles is that they do not require such a large diameter at high speeds and long racks to avoid the vibrations. Also they are cheaper.
- The Gears are straight toothed.
Technical specifications
- hardness: ca. 10 HRC
- Tooth module: 1,5
- Support angle: 20°
- Number of teeth: 34

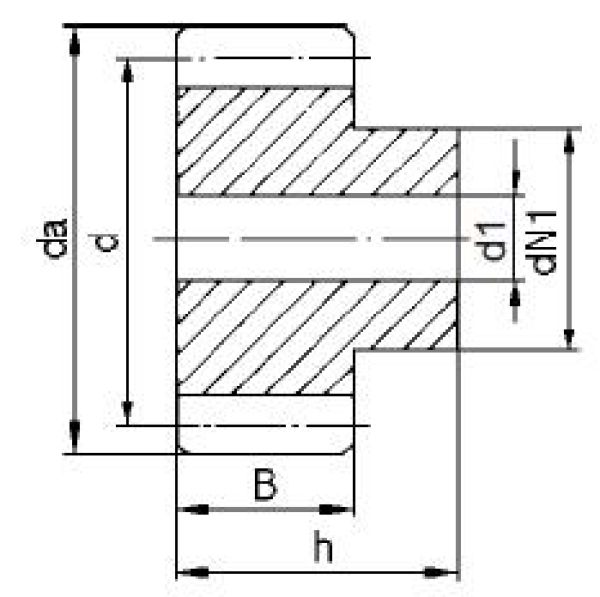

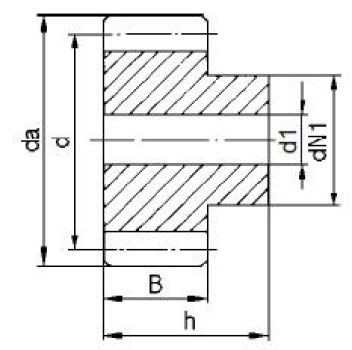

- Boring d1: Ø 14 mm
- Diameter d: 40 mm
- Diameter da: 42 mm
- Diameter dN1: 30 mm
- Total width h: 30 mm
- Tooth width B: 17 mm
- Steel grade: C43 PN-73/H-84026
- Max. Deviations: 0.1 mm / 300 mm
- Throughout cylindrical boring tolerance H7
Suitable toothed racks available from us! - Here (module M1)
* Quality product from the stockist *
* New and original packed up *
Scope of delivery: 1 piece of Gear with guarantee / invoice
