CNC control Profi D5 Mill for 4 axes with PC software
Modern PC - CNC control - Profi D5 Mill für 4 axes
- It is an advanced unit for controlling CNC machines such as milling machines and plotters. The product is designed for professional machining applications.
- The 4-axis CNC motion controller PROFI D5 contains an intuitive and user-friendly software, with which our company CNC PROFI has spent 4 years in design and 20 years of experience.
- The axes can be moved in MANUEL mode using a pressure switch or in the MPG-Modus with an external handwheel.
- The work in MDI mode is controlled on the basis of standard ISO G-codes, which we can enter manually or we can prepare a program of G-codes in AUTO-mode, for example with the Cad Cam program.
- Syntax checking, G-code analysis, G-code path preview and real-time tracking are some of the important features of our controller.
- In the program we have a preview of the tool path - visualization. The machining parameters such as feed rate or spindle speed can be easily corrected with potentiometer as required.
- Display in the languages - German, Polish, English, selectable in the setting parameter.
- The control works with Step Dir 5V signal so that servo or stepper motors can be controlled.
Technical specifications
Installation on PC with WINDOWS 11 to 7
Connection via LAN Connection –Ethernet

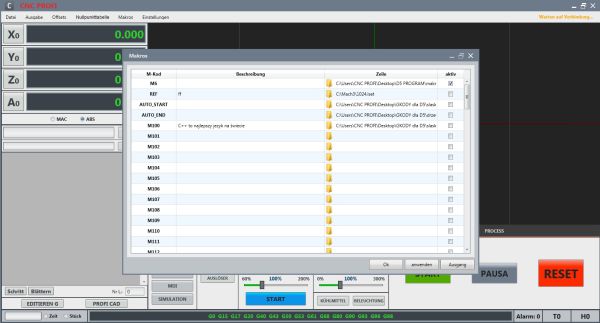

With Support for tool magazines and macros for tool magazines. Tool magazine types can be edited and customized.
The control supports macro programs that enable the execution of different processes depending on the connected inputs in the automation.
With a parameter lock to prevent unauthorized access.
An additional STOP button can be connected to a remote control.
Supports the metric and inch system with an automatic conversion function
8 outputs to support 4 axes X Y Z A
Logic TTL - compatible (5Volt) STEP / DIR
Control signal frequency up to 500 kHz
Circular interpolation - linear interpolation travel speed up to 20 m / min
Accuracy of the feed positioning: 0,001 mm
Backlash compensation
Supply voltage: 24V DC +/- 10%
Full optical isolation
Plug-in screw connections for easy connection of cables
20 programmable inputs
15 assigned inputs
10 2A transistor outputs
2 analog inputs 0-10V for spindle control
Connection for connecting a spindle with encoder or thread cutting
2 analog inputs 0-10V for speed control
Connection for connecting an MPG handwheel
Connection for signal transmitters of motor drivers
Automatic spindle control
Automatic spindle gear control
Other definable functions also include:
- Switch lightning on / off
- Switch vacuum table pump on / off
- Switch the chip ejector on / off
- Switch dust extraction on / off
- Activation of the coolant pump
- Activation of the central lubrication
- Activation of a freely defined trigger
- Support for Axis limit switch
- Support for axis reference switches

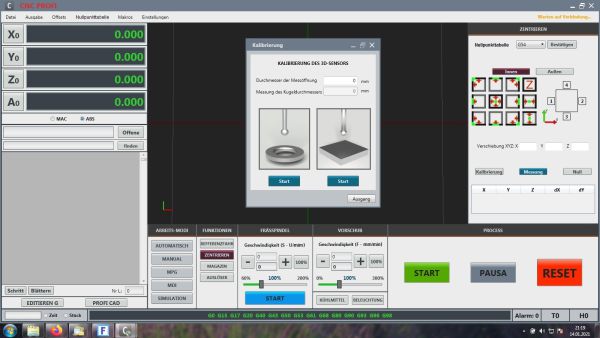

- Support for 3D height sensor and material edge
- Support for an automatic tool length correction sensor
* Quality product from the stockist *
* New and original packed up *
Scope of delivery:
Software Profi D5 Mill for 4 Axes for Download
1 x control board for connecting machine components and PC-LAN connection Operating instructions with data sheet - pin assignment
1 x LAN-Cross data cable
We are still available with advice and action after the purchase
with guarantee and invoice
